MB Crusher’s new sorting grapples
MB-G350
CARRIER ≥ 1,3 ≤ 2,6 Ton
OIL FLOW (OPENING/CLOSING) 15 l/min.
CLOSING PRESSURE (MAX) 200 bar
WEIGHT 85 kg
MB-G450
CARRIER ≥ 3 ≤ 6 Ton
OIL FLOW (OPENING/CLOSING) 40 l/min.
CLOSING PRESSURE (MAX) 250 bar
WEIGHT 225 kg
MB-G1000
CARRIER ≥ 18 ≤ 25 Ton
OIL FLOW (OPENING/CLOSING) 70 lt/min
CLOSING PRESSURE (MAX) 300 ÷ 400 bar
WEIGHT 1,615 Ton
The grapples are 100% made in Italy, built with Hardox’s anti-wear material, and are equipped with fall prevention valves, guaranteeing safety on the job site.
MB-G350 | MB-G450
Versatile and safe
Both models are designed to have an electrical kit installed for two-line functionality: this way, the two grapples can utilize 360° rotation, even with mini excavators with only two lines.
The MB-G450 also features interchangeable blades, which can be flipped around to extend the blades’ life.
Agile and precise

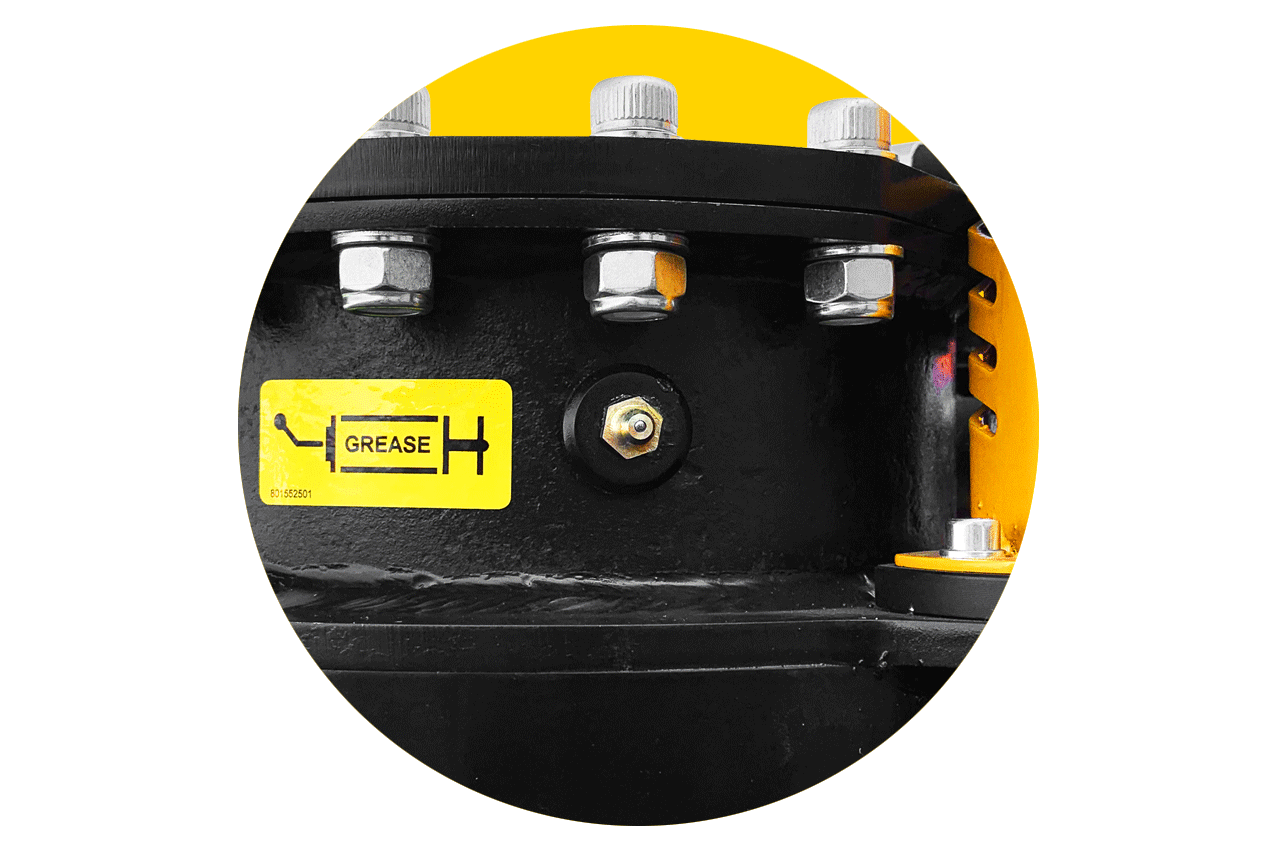

Maintenance is quick, easy, and happens on-site, thanks to the external greasing points.
On both models, you can install accessories to simplify job site operations.

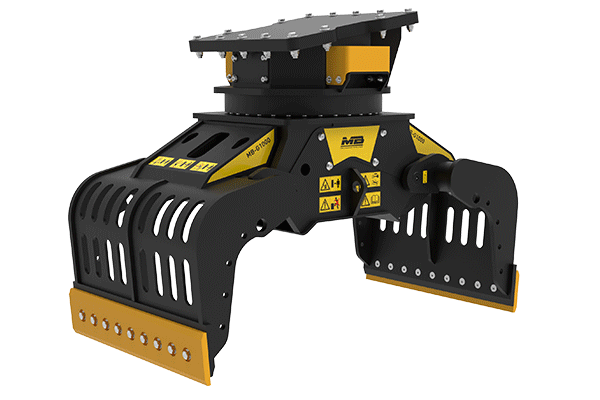

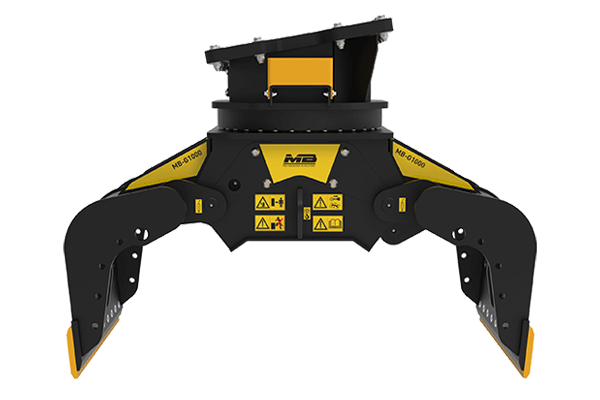

MB-G1000
The unit is equipped with an inclined plate, increasing its range of mobility.
The 360° rotation allows optimal operation and an effective grip in all working conditions.
More power
the unit is equipped with a double motor, allowing the unit 360° rotation and a stronger closing force and greater precision when managing materials, thanks to the balancing valves installed on the hydraulic cylinder.
Multifunctional and safe
» The jaws are designed to increase the blades’ grip. The great closing force and precise movements make it suitable for any construction site to sort materials of different shapes and weights safely.
» The safety valves prevent the claws from accidentally opening if the excavator’s pressure drops.
» The silent block lets you use the grapple when you need to be conscious of noise.
